| Product Name | Stainless Steel Push-In Straight Fitting |
| Brand | GLORYSTAR |
| Material | 304 Stainless Steel |
| Fitting Type | Push-In Straight Fitting with Male Thread |
| Application | Solenoid Valves, Pneumatic Pipelines and Silencer Connections |
| Compatible Tubing | PU and Nylon Tubes |
| Tube Outer Diameter | 4 / 6 / 8 / 10 / 12 / 16 mm |
| Thread Options | M5, M6, PT1/8, PT1/4, PT3/8 and PT1/2 |
| Operating Temperature | -20°C to 200°C |
| Maximum Pressure | Up to 25 kgf/cm² |
| Surface Treatment | Vibratory Polishing |
| Available Models | SS-PC10-02, SS-PC10-04, SS-PM12 and Silencer Thread Options |
| Key Features | Leak Resistant, Corrosion Resistant, Pressure Resistant and Easy to Install |
| Weight | Approx. 0.1 kg |
Laser Parts & Accessories, Other Accessories

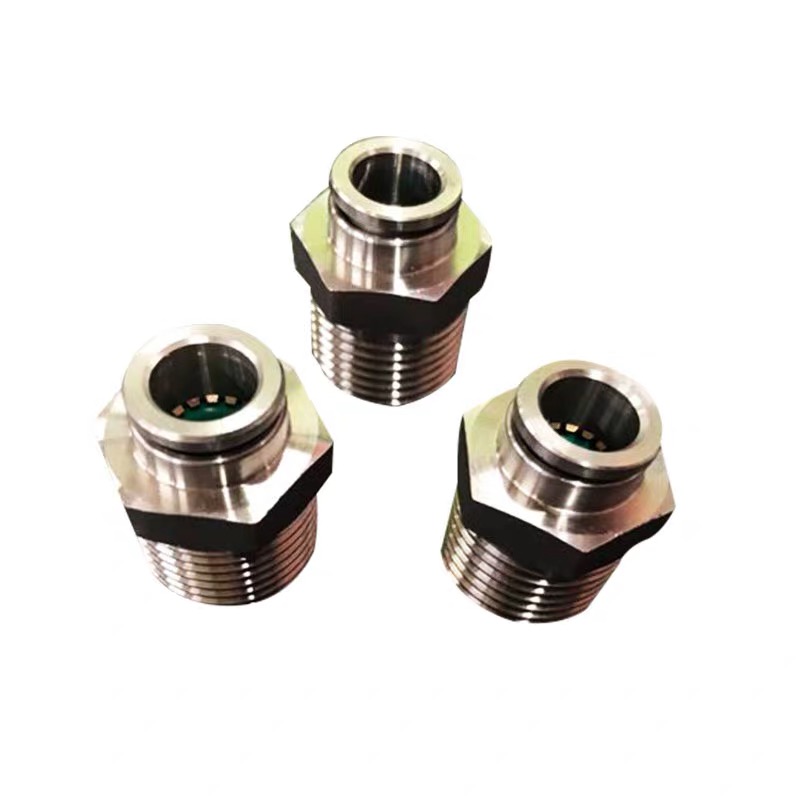

304 Stainless Steel Push-In Straight Pneumatic Fitting
